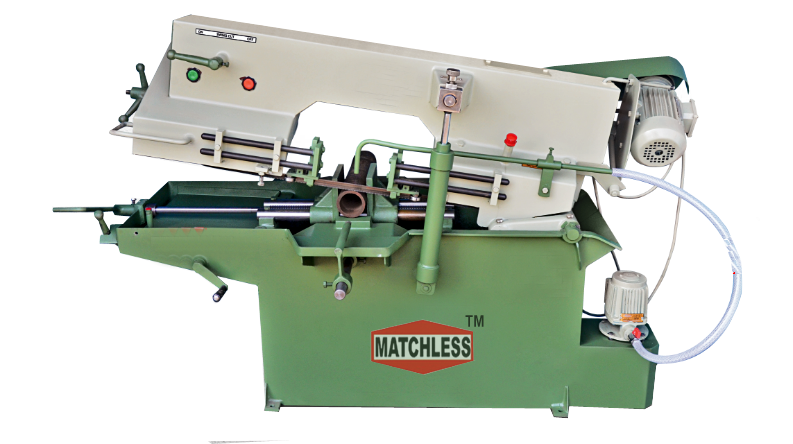

SIZE 200 MM

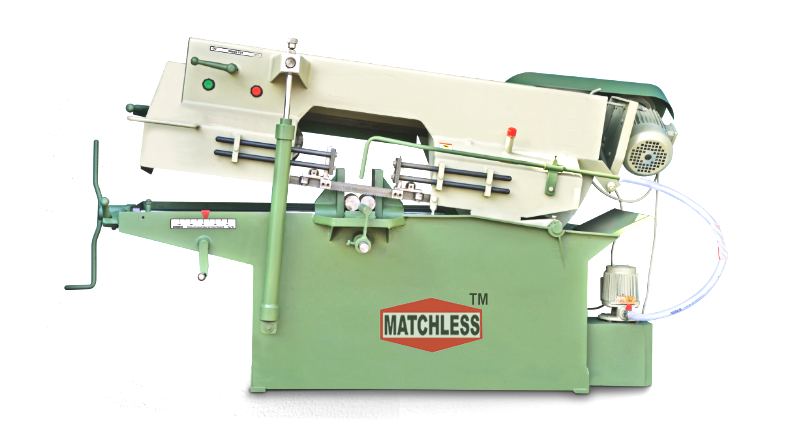

SIZE 150 MM

TECHNICAL SPECIFICATION

1. Endless circular 0.9mm blade so it has less material wastage & blade cost is cheaper.
2.Blade has circulating movement & moves in one direction only in one cycle time ,so the blade has continuous cutting and idle stroke & it always in contact with the material
3. Less power consumption due to Hi precision Gear Box dynamically balanced wheel.
4.Arm has swing type action for smoother & faster cutting of larger section.
5.Efficient self-centering vice for job clamping .
6.Separate Coolant Tank to avoid wastage of water and cutting oil & also for easy maintenance.
7.Chip Collection Tray to avoid maxing of water and chips.
8.Automatic shut off after completion of cutting .
9.Easy , Precise & Adjustable gravity feeding control makes optimum use of band saw  blade and it can be rewelded many times to save cost .
10.Each & every part of machine is easily repairable & replaceable .
Specifications:

Model

MB-175

MB-200

MB-250

MB-300

MB-350

MB-400

Cap. of Round Bar (mm)

175

200

250

300

350

400

Cap. of Square Bar (mm)

150

150

200

250

300

350

Drive Motor (HP/RPM)

2515/27.9

1/1440

2HP Motor 1440

3760/34/1.1

4100/34/1.1

2HP 960 RMP

Coolant Pump (HP/Volts)

0.15/440

0.15/440

0.15/440

0.15/440

0.15/440

0.15/440

Blade Speed (Mtr./Mnt.)

25/30/40

20/35/55/75

20/35/55/75

20/35/55/75

20/35/55/75

20/35/55/75

Bandsaw Blade (mm)

2515x20x0.9

3000x27x0.9

3300x27x0.9

3760x27x0.9

4100x27x0.9

4420x34x1.1

Guide Pulley Dia (mm)

340

410

425

496

496

550

Length (mm)

1500

1630

2000

2400

2550

2650

Width (mm)

570

580

600

830

830

830

Height (mm)

870

895

900

1050

1050

1200

Weight (approx.)

272kg.

322 kg.

400 kg.

761 kg.

821 kg.

900 kg.

Weight with packing

380 kg.

430 kg.

600 kg.

830 kg.

890 kg.

950 kg.

Standard Accessories: Coolant Pump with tank & Fitting ,Drive Motor , Contactor & Push Buttons,
Worm & Motor Pulley with V-Belt ,Job Stopper Assembly ,Oil Filled Worm Reduction Gear Box.
Optional Accessories: Oil Filled Adjustable Hydraulic Jumper ,Chip Removal Wire Brush for "HS" Models.
Extra Accessories: Bimetal Band saw Blade ,Job Roller Stand ,Swivel Vice for Miter Cutting.
Note: All Specification are subject to change without pnor notice .Demo Charge Extra.
